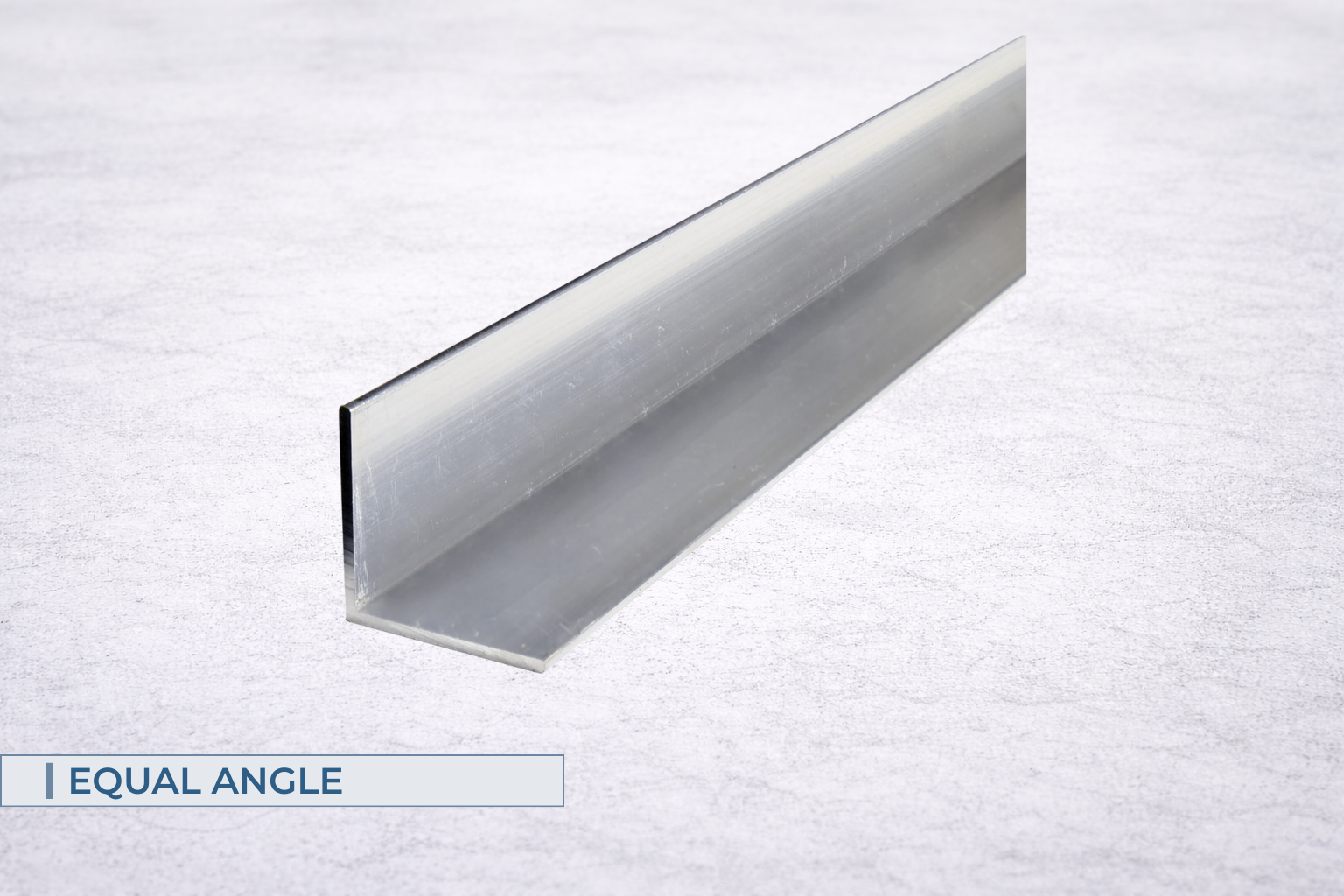

Equal Angle

Equal Angle

Equal Angle sections feature two equal-length sides forming a 90-degree angle. Used widely in structural framing and fabrication, they provide support, reinforcement and stability. Manufactured in corrosion-resistant aluminium, they are suitable for indoor and outdoor applications.

Make an enquiry
View full details

Product Spec

Technical dimensions, material grade and manufacturing details for this product.

Equal Angles
Profile Size Grade
10mm x 10mm x 1.5mm x 6000mm (NA10U)6063T6
12mm x 12mm x 1.5mm x 6000mm6063T6
12mm x 12mm x 1.5mm x 6000mm (NA10U)6063T6
15mm x 15mm x 1.5mm x 6000mm (NA10U)6063T6
15mm x 15mm x 3mm x 6000mm6063T6
15.9mm x 15.9mm x 3.2mm x 6000mm6063T6
16mm x 16mm x 1.5mm x 6000mm6063T6
16mm x 16mm x 1.6mm x 6000mm (MILL / NA10U)6063T6
19mm x 19mm x 1.4mm x 6000mm (MILL / NA10U)6063T6
19mm x 19mm x 1.5mm x 6000mm (MILL / NA10U)6063T6
19mm x 19mm x 1.6mm x 6000mm6063T6
19mm x 19mm x 3.2mm x 6000mm / 1.16mm6063T6
25mm x 25mm x 1.4mm x 6000mm6063T6
25mm x 25mm x 1.6mm x 6000mm (MILL / NA10U)6063T6
25mm x 25mm x 2mm x 6000mm6063T6
25mm x 25mm x 3mm x 6000mm6063T6
25mm x 25mm x 6mm x 6000mm6063T6
25.4mm x 25.4mm x 6.36mm x 6000mm6063T6
30mm x 30mm x 3mm x 6000mm6063T6
31.75mm x 31.75mm x 3.18mm x 6000mm6063T6
31.76mm x 31.76mm x 1.6mm x 6000mm6063T6
32mm x 32mm x 1.6mm x 6000mm (MILL / NA10U)6063T6
32mm x 32mm x 3mm x 6000mm6063T6
38mm x 38mm x 1.4mm x 6000mm6063T6
38mm x 38mm x 1.6mm x 6000mm6063T6
38mm x 38mm x 2mm x 6000mm6063T6
38mm x 38mm x 3mm x 6000mm6063T6
38mm x 38mm x 4.78mm x 6000mm6063T6
38mm x 38mm x 6mm x 6000mm6063T6
40mm x 40mm x 3mm x 5100mm / 8000mm6063T6
44mm x 44mm x 3mm x 6000mm6063T6
50mm x 50mm x 1.6mm x 6000mm / 3000mm6063T6
50mm x 50mm x 2mm x 6000mm6063T6
50mm x 50mm x 3mm x 6000mm6063T6
50mm x 50mm x 6mm x 6000mm6063T6
50.8mm x 50.8mm x 4.78mm x 6000mm6063T6
60mm x 60mm x 3mm x 6000mm6063T6
76mm x 76mm x 2mm x 6000mm6063T6
76mm x 76mm x 3mm x 6000mm6063T6
76.2mm x 76.2mm x 4.76mm / 4.78mm x 6000mm6063T6
76.2mm x 76.2mm x 6.36mm x 6000mm6063T6
100mm x 100mm x 3mm x 6000mm6063T6
100mm x 100mm x 6mm x 6000mm6063T6
101.6mm x 101.6mm x 6.35mm x 6000mm6063T6
Additional sizes and finishes available on request.
Cut-to-size and bulk supply options available.
