Channel

Channel

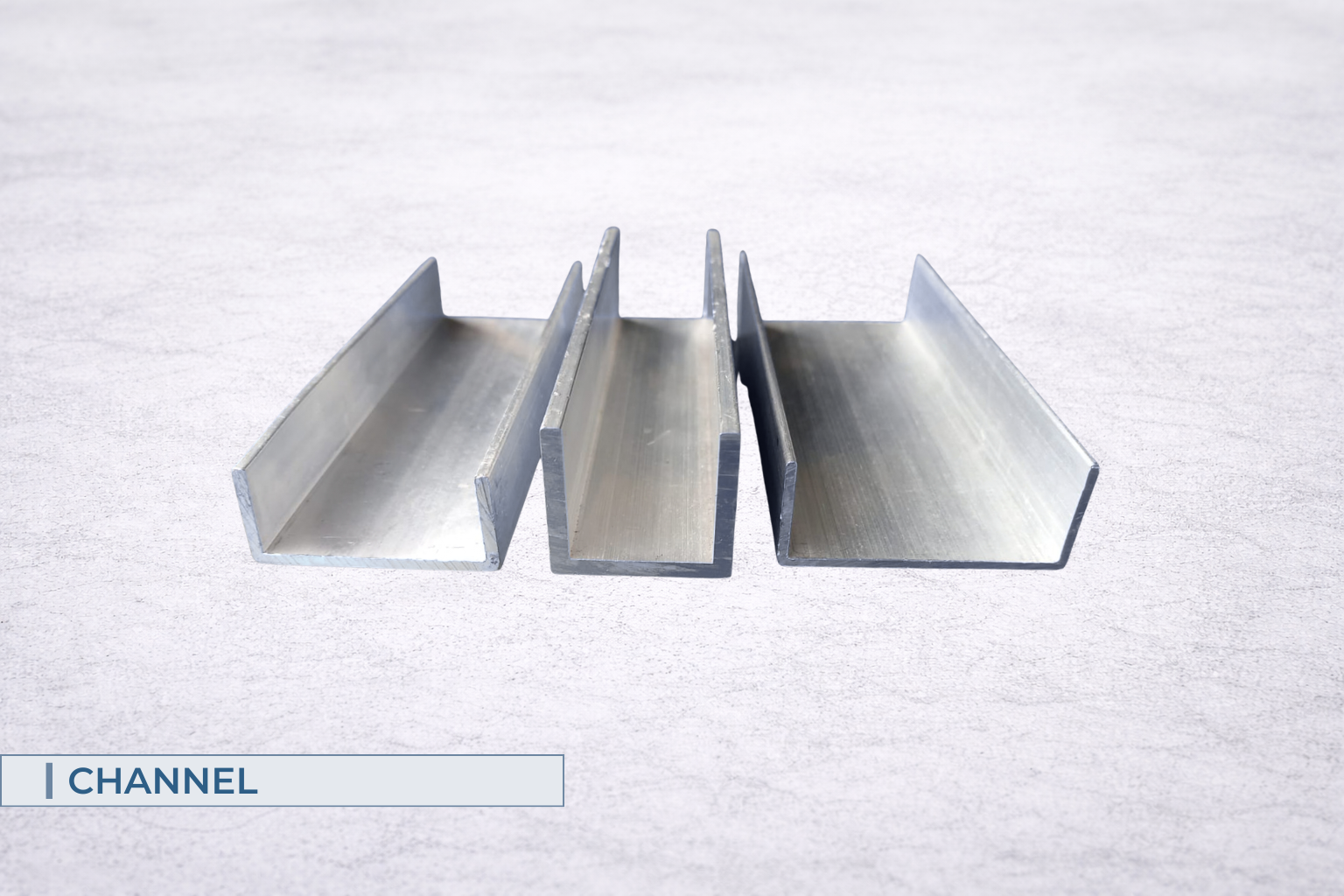

Aluminium Channel sections are versatile structural profiles used in framing, edging and support applications. Lightweight yet strong, they offer corrosion resistance and are suitable for construction, fabrication and general engineering use.

Make an enquiry
View full details

Product Spec

Technical dimensions, material grade and manufacturing details for this product.

Aluminium Alloys supplies aluminium channels into various manufacturing sectors and the range of channels meet light and heavy-duty requirements. Channels are normally alloy 6063 but we can supply these in other alloys on request.

We are also able to bend channels to clients needs but these cannot exceed 3 metres in length.
CHANNELS (OUTSIDE SIZES) GRADE
9.5mm x 9.5mm x 9.5mm x 1.6mm x 3000mm & 2900mm 6063T6
9.5mm x 9.5mm x 9.5mm x 1.6mm x 6000mm & Black 6063T6
12mm x 12mm x 12mm x 1.5mm x 6000mm 6063T6
12mm x 15mm x 12 mm x 1.6 mm x 3000mm 6063T6
12mm x 19mm x 12mm x 1.6mm x 6000mm 6063T6
12.5mm x 25mm x 3mm x 6000mm 6063T6
12.7 mm x 9.5mm x 12.7mm x 1.6mm x 6000m 6063T6
12.7mm x 12.7mm x 12.7mm x 1.6mm x 6000mm 6063T6
12.7mm x 19mm x 12.7mm x 1.6mm x 6000mm 6063T6
12.7mm x 25.4mm x 12.7mm x 1.5mm x 6000mm 6063T6
12.7mm x 38.1mm x 12.7mm x 3mm x 6000mm 6063T6
15mm x 14.9mm x 15mm x 1.2mm x 6000mm 6063T6
15.88mm x 15.88mm x 1.6mm x 6000mm 6063T6
16.8mm x 38mm x 16.8mm x 2mm x 5850mm/6000mm 6063T6
19mm x 9.5mm x 19mm x 1.58mm x 6000mm 6063T6
19mm x 37.2mm x 19mm x 1.6mm x 6000mm 6063T6
19mm x 38mm x 19mm x 3mm x 6000mm 6063T6
19mm x 44mm x 19mm x 1.6mm x 6000mm 6063T6
19mm x 47.5mm x 19mm x 1.5mm x 6000mm 6063T6
19.2mm x 19.2 x 1.2mm x 6000mm 6063T6
19.5mm x 19.5 mm x 1.2mm x 6000mm 6063T6
19.5mm x 19.5mm x 1.5mm x 6000mm 6063T6
20mm x 80mm x 20mm x 1.6mm x 6000mm 6063T6
21mm x 21mm x 21 mm x 1mm x 6000mm 6063T6
21mm x 80.5mm x 21mm x 1.5mm x 6000mm 6063T6
23mm x 23mm x 1mm x 6000mm 6063T6
23mm x 23mm x 23mm x 1mm x 6000mm 6063T6
23mm x 23mm x 23mm x 1.3mm x 6000mm NA10
25mm x 25mm x 25mm x 3mm x 6000mm 6063T6
25mm x 27mm x 25mm x 3mm x 6000mm 6063T6
25mm x 38mm x 25mm x 2mm x 6000mm 6063T6
25mm x 38mm x 25mm x 3mm x 6000mm 6063T6
25mm x 50mm x 25mm x 2mm x 6000mm 6063T6
25mm x 50mm x 25mm x 3mm x 6000mm 6063T6
25.4mm x 50.8mm x 25.4mm x 4.78mm x 6000mm 6063T6
25.4mm x 50.8mm x 25.4mm x 6.35mm x 6000mm 6063T6
25.65mm x 32.05mm x 25.65mm x 2.6mm x 6000mm 6063T6
30mm x 54.5mm x 30mm x 2mm x 6000mm 6063T6
30mm x 60mm x 30mm x 1.7mm x 6000mm 6063T6
35mm x 70mm x 35mm x 3mm x 6000mm 6063T6
35mm x 80mm x 35mm x 2mm x 6000mm 6063T6
35mm x 84mm x 35mm x 2mm x 6000mm 6063T6
38mm x 38mm x 38mm x 3mm x 6000mm 6063T6
38mm x 76mm x 38mm x 3mm x 6000mm 6063T6
38mm x 76mm x 38mm x 6mm x 6000mm 6063T6
38mm x 76mm x 38mm x 6.3mm x 6000mm 6063T6
40mm x 60mm x 40mm x 4mm x 6000mm 6063T6
50.8mm x 50.8mm x 50.8mm x 6.4mm x 6000mm 6063T6
50mm x 100mm x 50mm x 3mm x 6000mm 6063T6
50mm x 100mm x 50mm x 6mm x 6000mm 6063T6
50.8mm x 101.6mm x 50.8mm x 6000mm 6063T6
50.8mm x 127mm x 50.8mm x 6.36mm x 3000mm 6063T6
50.8 mm x 127mm x 50.8mm x 6.36mm x 6000mm 6063T6
63.5mm x 127mm x 63.5mm x 6.36mm x 6000mm 6063T6
106mm x 35mm x 2mm x 6000mm 6063T6
Other thicknesses, sheet sizes and alloys are available on request.
Cut-to-size options and bulk supply available. Contact us for project-specific requirements.
