Flat Bar

Flat Bar

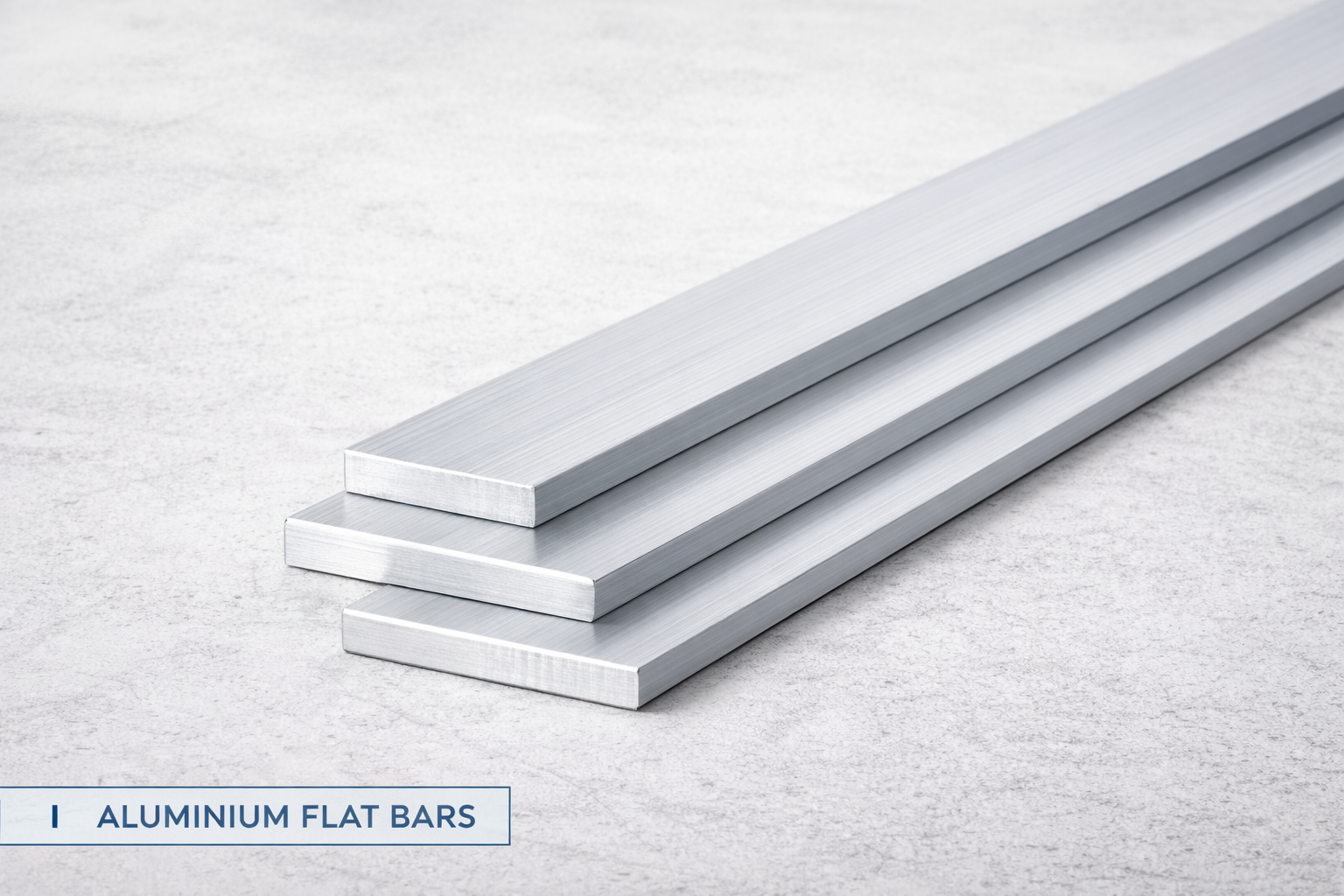

Flat Bar is a solid rectangular aluminium section used in structural support, fabrication and reinforcement applications. Known for its versatility, corrosion resistance and ease of machining.

Make an enquiry
View full details

Product Spec

Technical dimensions, material grade and manufacturing details for this product.

Flat Bars are sold for interiors, solar, transport and building industries and we can supply anodised skirtings for the dry walling industry as well. Aluminium Alloys stocks heavy duty flat bar (bus bar) for electrical applications as well.
FLAT BARS GRADE
9.5mm x 3.18mm x 6000mm 6063T6
10mm x 4mm x 3000mm & 6000mm 6063T6
12.7mm x 3.2mm x 6000mm & 3.8mm 6063T6
15.88mm x 3.18mm x 6000mm 6063T6
19.8mm x 4mm x 5300mm 6063T6
19mm x 2mm x 6000mm 6063T6
19mm x 3mm x 6000mm 6063T6
19mm x 6mm x 6000mm 6063T6
19mm x 6.4mm x 6000mm 6063T6
19.06mm x 9.52mm x 6000mm 6063T6
20mm x 2mm x 6000mm 6063T6
20mm x 4mm x 6000mm 6063T6
25mm x 2mm x 6000mm 6063T6
25mm x 3mm x 6000mm 6063T6
25mm x 3.2mm x 6000mm 6063T6
25mm x 4.78mm x 6000mm 6063T6
25mm x 6mm x 3000mm/6000mm 6063T6
25mm x 8mm x 6000mm 6063T6
25.4mm x 9.52mm x 6000mm 6063T6
38mm x 6mm x 6000mm 6063T4
50mm x 10mm x 6000mm 6063T4
50.8mm x 2.04mm x 6000mm 6063T6
63.5mm x 6.35mm x 4500mm 6063T6
63.5mm x 6.35mm x 9000mm 6063T4
76.2mm x 6.36mm x 6000mm 6063T6
38mm x 3mm x 6000mm/4.8mm 6063T6
38.1mm x 6.35mm x 6000mm 6063T6
38.1mm x 9.52mm x 6000mm/9.53mm 6063T6
38mm x 3.18mm x 6000mm 6063T6
38mm x 4.8mm x 6000mm 6063T6
50mm x 2mm x 6000mm 6063T6
50mm x 3mm x 6000mm 6063T6
50mm x 6mm x 6000mm 6063T6
50mm x 8mm x 6000mm/10mm/25mm 6063T6
50.8mm x 9.52mm x 6000mm 6063T6
50.8mm x 12.7mm x 6000mm 6063T6
50mm x 25mm x 6000mm 6063T6
51mm x 4.8mm x 6000mm 6063T6
60mm x 3mm x 3000mm/6000mm 6063T6
60mm x 6mm x 6000mm 6063T6
73.8mm x 1.6mm x 5800mm NA10U 6063T6
75mm x 1.5 x 6000mm MILL 6063T6
76mm x 1.6mm x 6000mm NA15U and Mill 6063T6
76mm x 6mm x 6000mm 6063T6/T4
76mm x 12mm x 6000mm 6063T6
76.2mm x 3.18mm x 6000mm 6063T6/T4
80mm x 6mm x 6000mm 6063T6/T4
80mm x 10mm x 6000mm 6063T6/T4
97mm x 2mm x 6500mm 6063T6/T4
100mm x 1.6mm x 6000mm NA15U & MILL 6063T6/T4
100mm x 6mm x 6000mm 6063T6/T4
100mm x 8mm x 6000mm 6063T6/T4
100mm x 10mm x 6000mm 6063T6/T4
100mm x 12mm x 6000mm 6063T6/T4
100mm x 15mm x 6000mm 6063T6/T4
100mm x 20mm x 6000mm 6063T6
100mm x 30mm x 6000mm RADIUS 0.4 6063T6
101.6mm x 3.18mm x 6000mm 6063T6
125mm x 8mm x 6000mm 6063T6
125mm x 12mm x 6000mm 6063T6
127mm x 12.7mm x 6000mm 6063T6 /T4
150mm x 12mm x 5500mm 6063T6
150mm x 12mm x 3000mm/6000mm 6063T6
Other thicknesses, sheet sizes and alloys are available on request.
Cut-to-size options and bulk supply available. Contact us for project-specific requirements.
