H Extrusions

H Extrusions

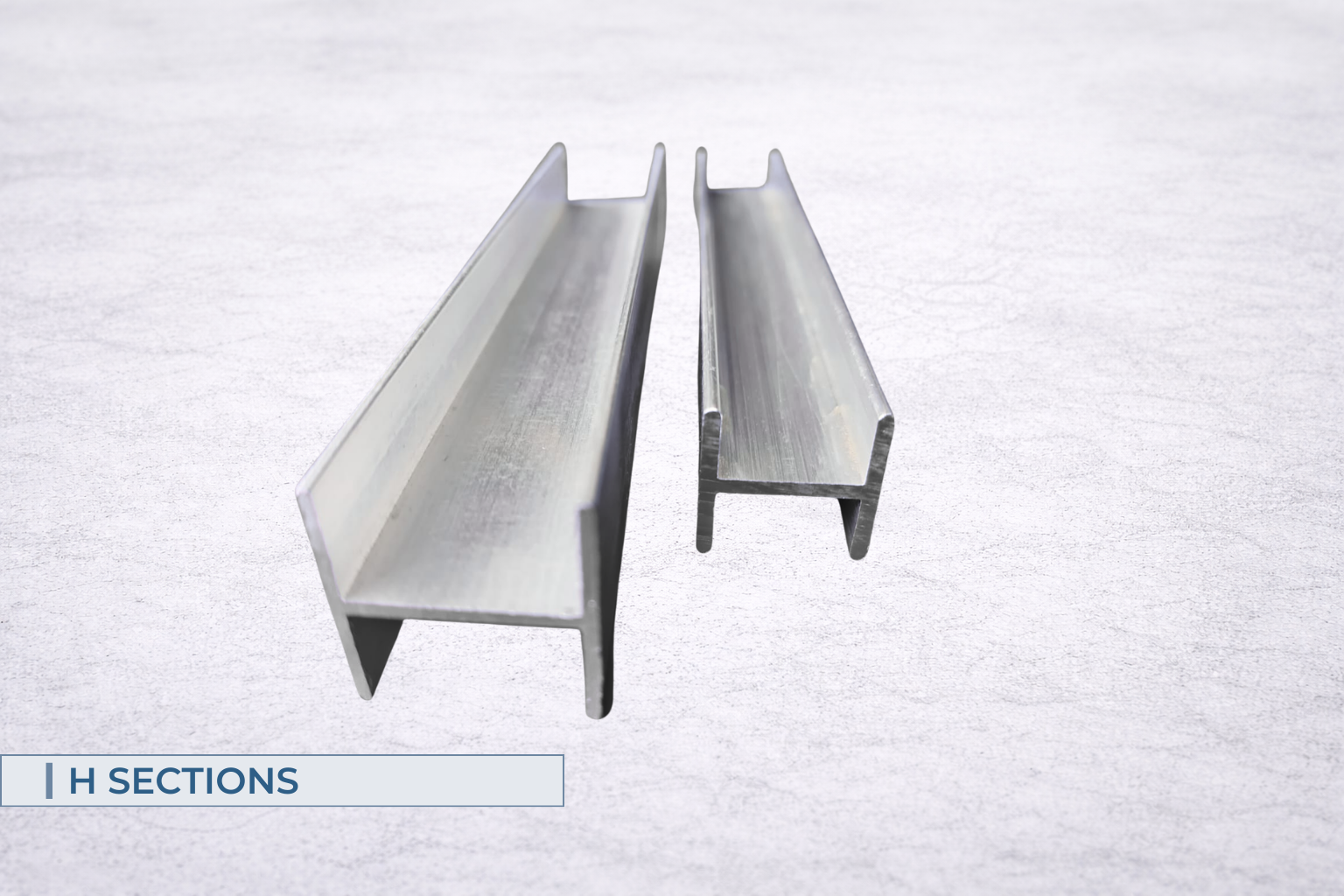

H Extrusions are structural aluminium profiles used in framing and panel systems. Their design allows for secure joining and load distribution across applications.

Make an enquiry
View full details

Product Spec

Technical dimensions, material grade and manufacturing details for this product.

Baby h / H-Section
Profile Size Grade
H-SECTION 16mm x 16mm x 1.6mm x 6000mm6063T6
H-SECTION 20mm x 20mm x 1.0mm x 5800mm6063T6
H-SECTION 20mm x 20mm x 1.1mm x 5800mm6063T6
H-SECTION 20mm x 20mm x 1.6mm x 5800mm / 6000mm6063T6
H-SECTION 20mm x 20mm x 1.6mm x 5800mm (NA10U)6063T6
H-SECTION 40mm x 20mm x 1.1mm x 5800mm6063T6
h (S) 30mm x 15mm x 4mm (G) x 6000mm6063T6
h (M) 36mm x 22mm x 6mm (G) x 6000mm6063T6
h (L) 65mm x 40mm x 7mm (G) x 6000mm6063T6
h EXTRUSION 44mm x 25mm x 3mm x 4000mm (NF01205)6063T6
h EXTRUSION 44mm x 25mm x 3mm x 5000mm (NF01205) - 58206063T6
h EXTRUSION 44mm x 25mm x 3mm x 6000mm (NF01205)6063T6
h EXTRUSION 44mm x 25mm x 3mm x 7000mm (NF01205)6063T6
h 15.9mm x 15.9mm x 1.6mm x 6000mm6063T6
h 19.2mm x 20mm x 1.2mm x 6000mm (MILL / NA10U)6063T6
h 20mm x 20mm x 1mm x 6000mm6063T6
Additional sizes and finishes available on request.
Cut-to-size and bulk supply options available.
