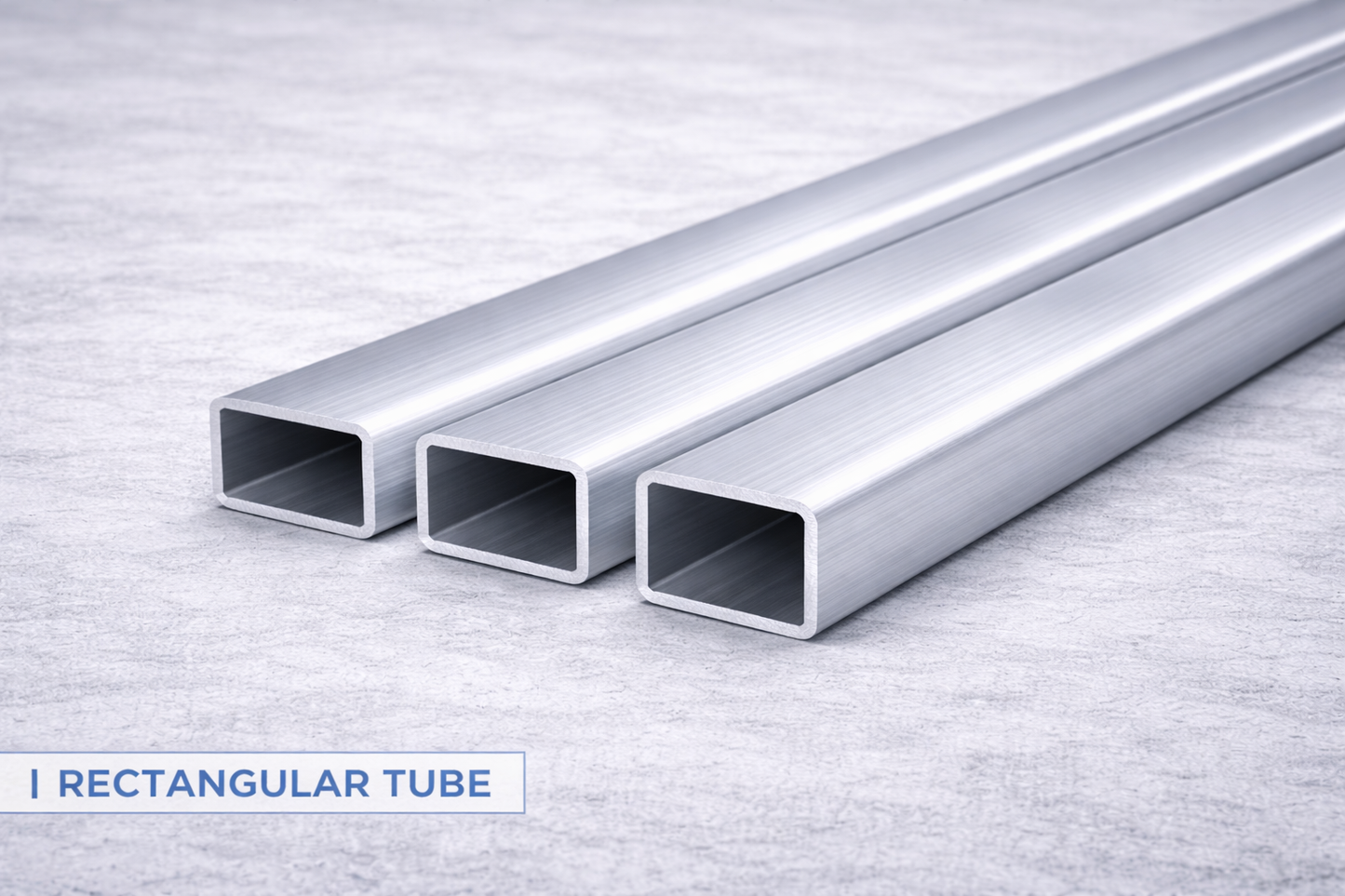

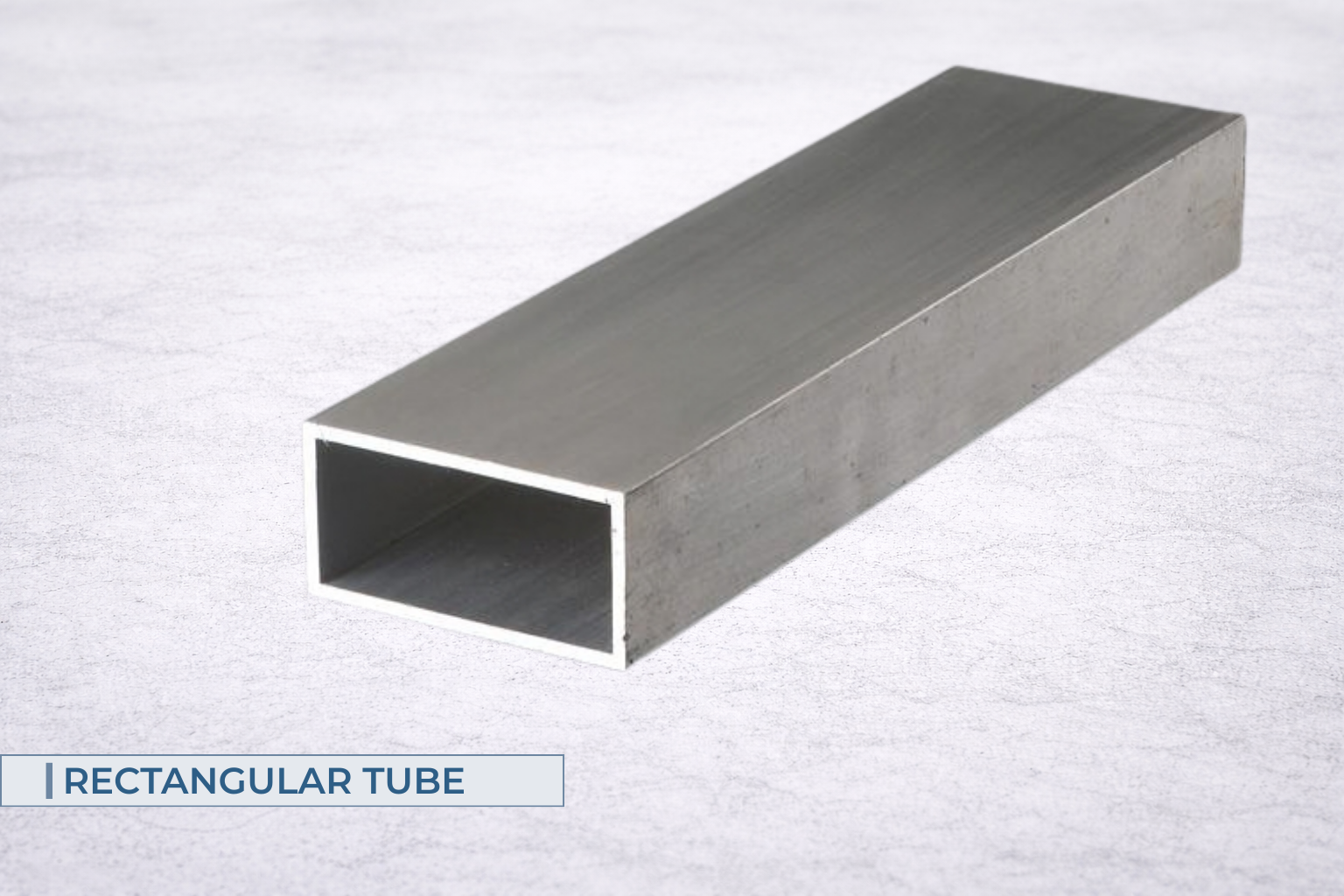

Rectangular Tube

Rectangular Tube

Rectangular Tube sections provide enhanced directional strength and are commonly used in structural fabrication, frames and load-bearing applications. Lightweight and corrosion resistant.

Make an enquiry
View full details

Product Spec

Technical dimensions, material grade and manufacturing details for this product.

RECTANGULAR TUBES
OUTSIDE SIZES (RADIUS/SHARP CORNERS) 		GRADE
18mm x 12mm x 1.2mm x 6000mm6063T6
18.7mm x 15mm x 1.6mm x 5850mm NA10U6063T6
20mm x 10mm x 2mm x 6000mm6063T6
24mm x 18mm x 1.2mm x 6000mm (S)6063T6
25.4mm x 12.7mm x 1.5mm x 6000mm6063T6
30mm x 17.4mm x 1.35mm x 6000mm6063T6
32mm x 21.5mm x 1.8mm x 6000mm (R)6063T6
33mm x 20mm x 1.25mm x 6000mm (R)6063T6
38mm x 25.4mm x 2mm x 6000mm6063T6
40mm x 20mm x 1.2mm x 6000mm (R)6063T6
40mm x 20mm x 1.2mm x 6000mm (S)6063T6
40mm x 20mm x 2mm x 6000mm6063T6
50mm x 25mm x 1.5mm x 6000mm6063T6
50mm x 20mm x 2mm x 6200mm6063T6
50mm x 25mm x 2mm x 6000mm (R)6063T6
50mm x 25mm x 2mm x 6000mm (S)6063T6
50mm x 38mm x 2mm x 6000mm6063T6
50mm x 25mm x 3.2mm x 6000mm6063T6
60mm x 30mm x 1.4mm x 6000mm6063T6
74mm x 24mm x 1.3mm x 6000mm (R) & (S)6063T6
75mm x 25mm x 1.6mm x 6000mm6063T6
76mm x 38mm x 2mm x 6000mm6063T6
76.2mm x 38.1mm x 3.18mm x 6000mm6063T6
97mm x 25mm x 1.3mm x 6000mm (S)6063T6
97mm x 25mm x 1.3mm x 6000mm (R)6063T6
97mm x 25mm x 1.3mm x 8000mm (R)6063T6
100mm x 38mm x 2mm x 6000mm6063T6
100mm x 50mm x 2mm x 6000mm6063T6
100mm x 50mm x 3mm x 6000mm6063T6
100.6mm x 50.8mm x 6.34mm x 6000mm6063T6
150mm x 50mm x 3mm x 6000mm6063T6
150mm x 100mm x 3mm x 5000mm6063T6
150mm x 100mm x 3mm x 6000mm6063T6
150mm x 100mm x 3mm x 7000mm6063T6
150mm x 100mm x 3mm x 8000mm6063T6
200mm x 50mm x 4mm x 6000mm (H4917)6063T6
200mm x 50mm x 4mm x 8000mm (H4917)6063T6
Other thicknesses, sheet sizes and alloys are available on request.
Cut-to-size options and bulk supply available. Contact us for project-specific requirements.
