Round Tube

Name: Round Tube
Brand: Alluminium Alloys
Availability: InStock

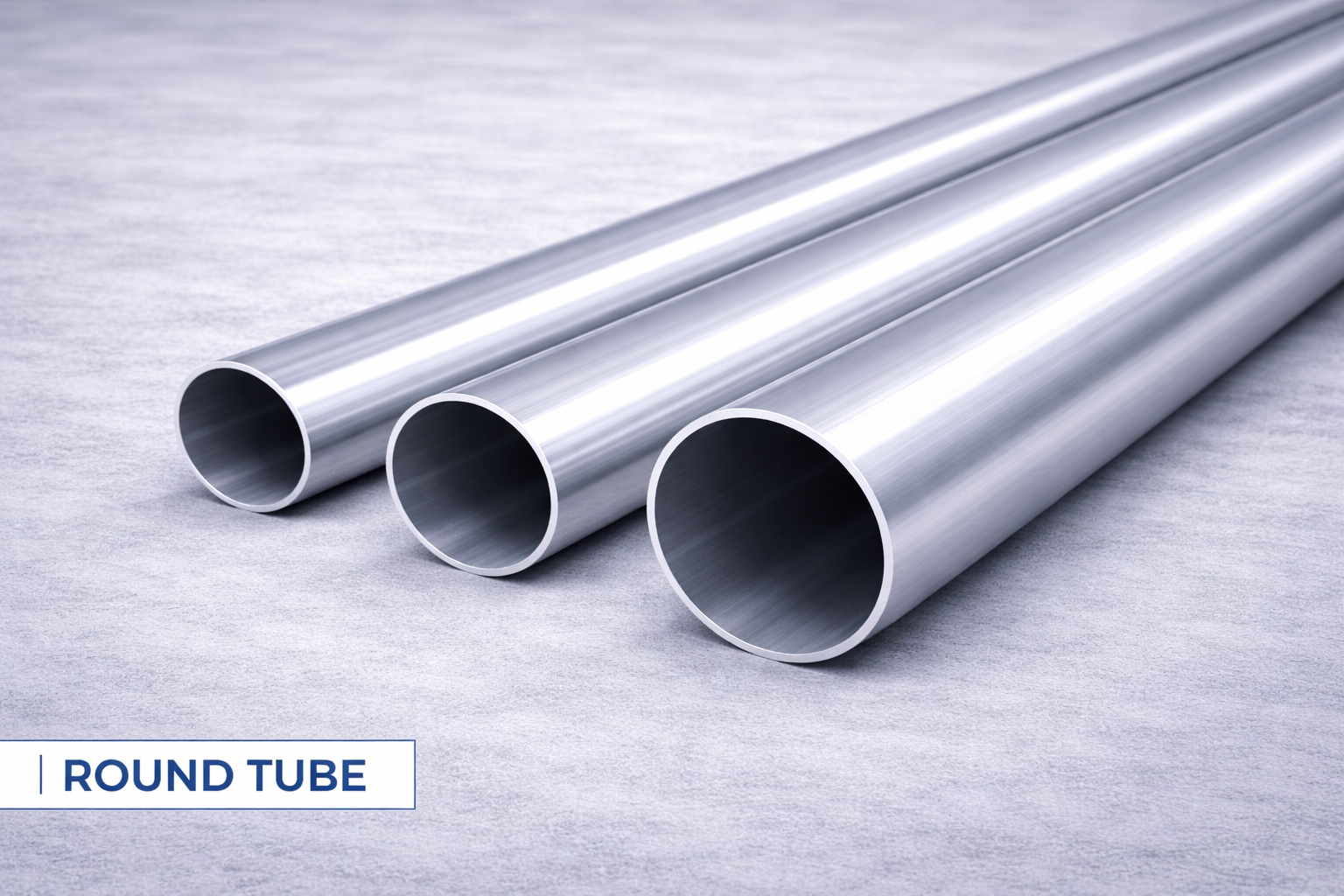

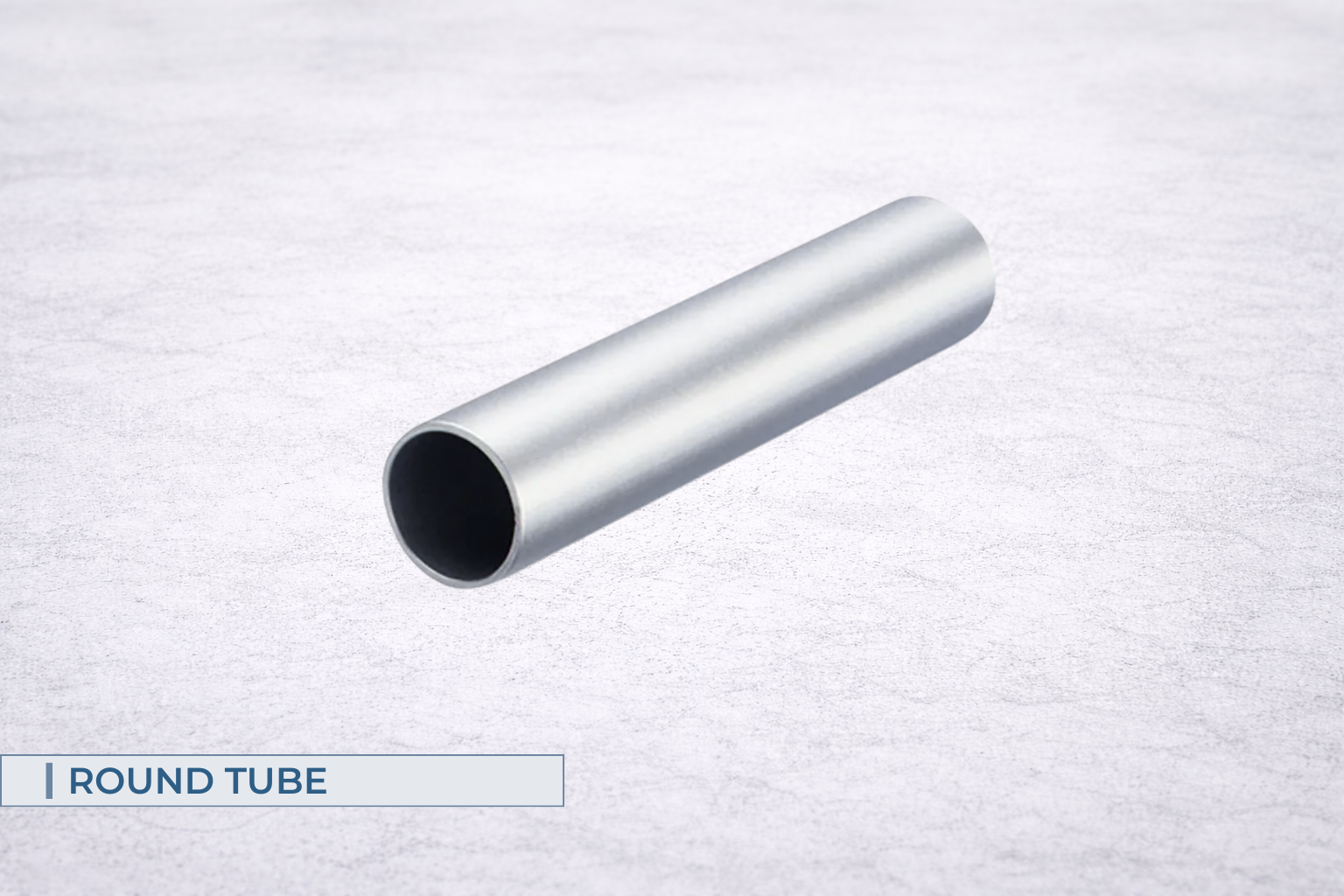

Round Tube sections are hollow cylindrical aluminium extrusions used in structural, architectural and general engineering applications. They provide excellent strength-to-weight ratio, corrosion resistance and ease of fabrication.

Make an enquiry

View full details

Product Spec

Technical dimensions, material grade and manufacturing details for this product.

Aluminium Alloys carries a wide range of sizes to service the manufacturing sectors which include inter alia the lighting, communication, electrical and outdoor/leisure sectors. Certain tubing is popular with curtain rail manufacturing companies.
ROUND TUBES	GRADE
1.2mm x 6000mm/6200mm	6063T6
6mm x 1.5mm x 6000mm	6063T6
8mm x 1.2mm x 6000mm	6063T6
9.5mm x 1.2mm x 6000mm	6063T6
9.8mm x 1.2mm x 6000mm NA10U	6063T6
10mm x 1.2mm x 6000mm	6063TH (L) & 6063T6
12.7mm x 1.1mm x 4800mm NA10U	6063T6
12.7mm x 3.18mm x 6000mm (L)	6063T6
12.7mm x 1.2mm x 6000mm NA10U	6063T6
12.7mm x 1.65mm x 6000mm (Mill)	6063T6
15.88mm x 1.22mm x 6000mm	6063T6
15.88mm x 1.62mm x 6000mm	6063T6
16mm x 1.5mm x 6000mm	6063T6
16mm x 1.5mm x 6000mm NA10U	6063T6
16mm x 4mm x 6000mm	6063T6
19mm x 1.2mm x 6000mm	6063T6
19mm x 1.6mm x 6000mm & 5500mm	6063T6
19mm x 3.18mm x 6000mm	6063T6
20mm x 2mm x 6000mm	6062T6
20mm x 6.25mm x 6000mm	6063T6
22.2mm x 1mm x 6000mm	6063T6
22.2mm x 1.2mm x 6000mm & NA1OU	6063T6
22.2mm x 1.6mm x 6000mm	6063T6
22.5mm x 2.5mm x 5800mm	6063T6
22.25mm x 2.8mm x 6000mm	6063T6
22mm x 6mm x 6000mm & 7000mm	6063T6
25mm x 1.15mm x 6000mm	6063T4
25mm x 2mm x 5850mm NA10U	6083T6
25.4mm x 1.22mm x 6000mm & NA1OU	6063T6
25.4mm x 1.62mm x 6000mm	6063T6
25.4mm x 2mm x 6000mm	6063T6
25.4mm x 3.18mm x 6000mm (L)	6063T6
28.58mm x 1.10mm x 6000mm	6063T6
28.6mm x 1.2mm x 4460mm/6000mm/6500mm	6063T6
28.6mm x 1.2mm x 6145mm (6061T6)	6063T6
30mm x 1.2mm x 6000mm	6063T6
31.8mm x 1.6mm x 6000mm (T4)	6063T6
31.8mm x 3.2mm x 6000mm (L)	6063T6
32mm x 2mm x 6000mm	6063T6
32mm x 3mm x 6000mm	6063T6
32mm x 3mm x 7000mm	6063T6
32mm x 4.25mm x 6000mm	6063T6
34mm x 2.5mm x 6000mm	6063T6
35mm x 2.5mm x 6000mm (L)	6063T6
35mm x 3mm x 6000mm	6063T6
38mm x 1.2mm x 6000mm/7000mm	6063T6
38mm x 1.6mm x 6000mm & 7000mm	6063T6
38mm x 2.8mm x 6000mm	6063T6
38mm x 2mm x 6000mm	6063T6
38mm x 2mm x 7000mm	6063T6
38mm x 7.5mm x 3000mm (6082T6) (L)	6063T6
38mm x 3mm x 6000mm & 5000mm	6063T6
40mm x 1.5mm x 1594mm (L)	6082T6
40mm x 3mm x 6000mm	6082T6
41mm - Ribbed Trailer 5800mm	6082T6
42mm x 2.5mm x 6000mm	6082T6
44.45mm x 3.18mm x 6000mm	6063T6
45mm x 2mm x 6000mm	6063T6
46mm x 3mm x 6000mm	6063T6
48mm x 2.5mm x 6000mm	6063T6
48mm x 3mm x 6000mm	6063T6
50mm x 2mm x 6000mm (6082T6)	6063T6
50mm x 4.8mm x 5000mm	6063T6
50mm x 4.8mm x 6000mm	6063T6
50mm x 5mm x 6000mm	6063T6
50mm x 10mm x 6000mm	6063T6
50.8mm x 1.6mm x 6000mm	6063T6
50.8mm x 2.54mm x 5000mm	6063T6
50.8mm x 3.18mm x 6000mm (60682T6)	6063T6
50.8mm x 8.5mm x 6000mm (L)	6063T6
57.1mm x 2.75mm x 6000mm	6063T6
60mm x 1.6mm x 6000mm & 6100mm	6063T6
60mm x 4.5mm x 6000mm	6063T6
60.32mm x 3.92mm x 2000mm (6061T6)	6063T6
63.5mm x 2mm x 6000mm (6061T6)	6063T6
63.5mm x 3.18mm x 6000mm	6063T6
71.94mm x 5.19mm x 6000mm (6061T6)L	6063T6
73mm x 7 x 3000 (6082T6)	6063T6
76.2mm x 1.05mm x 6000mm WHITE	6063T6
76.2mm x 1.2mm x 6000mm WHITE	6063T6
76.2mm x 1.6mm x 6000mm	6063T6
76.2mm x 3.18mm x 4500mm (Mill finish)	6063T6
76.2mm x 3.18mm x 6000mm	6063T6
76.2mm x 3.18mm x 7250mm	6063T4
76.2 x 3.18mm x 2750mm	6063T6
76.2 x 3.18mm x 3250mm	6063T6
76.2 x 3.18mm x 3300mm	6063T6
76.2 x 3.18mm x 4000mm	6063T6
76.2 x 3.18mm x 4750mm	6063T6
79.38mm x 3.42mm x 5000mm (6061T6)	6063T6
80mm x 5mm x 6000mm	6083T6
80mm x 6mm x 6000mm	6063T6
87.64mm x 3.5mm x 5000mm	6083T6
88.9mm x 4.78mm x 6000mm & 3.18mm	6063T6
101.5mm x 3.2mm x 6000mm (L)	6063T6
101.6mm x 3.18mm x 6000mm	6063T6
101.6mm x 6.36mm x 7000mm & 5000mm	6063T6
114.3mm x 6mm x 6000mm (L)	6063T6
127mm x 3.5mm x 6000mm	6063T6
150mm x 3.18mm x 6000mm	6063T6
168.28mm x 4.2mm x 6000mm	6063T6

Other thicknesses, sheet sizes and alloys are available on request.
Cut-to-size options and bulk supply available. Contact us for project-specific requirements.
