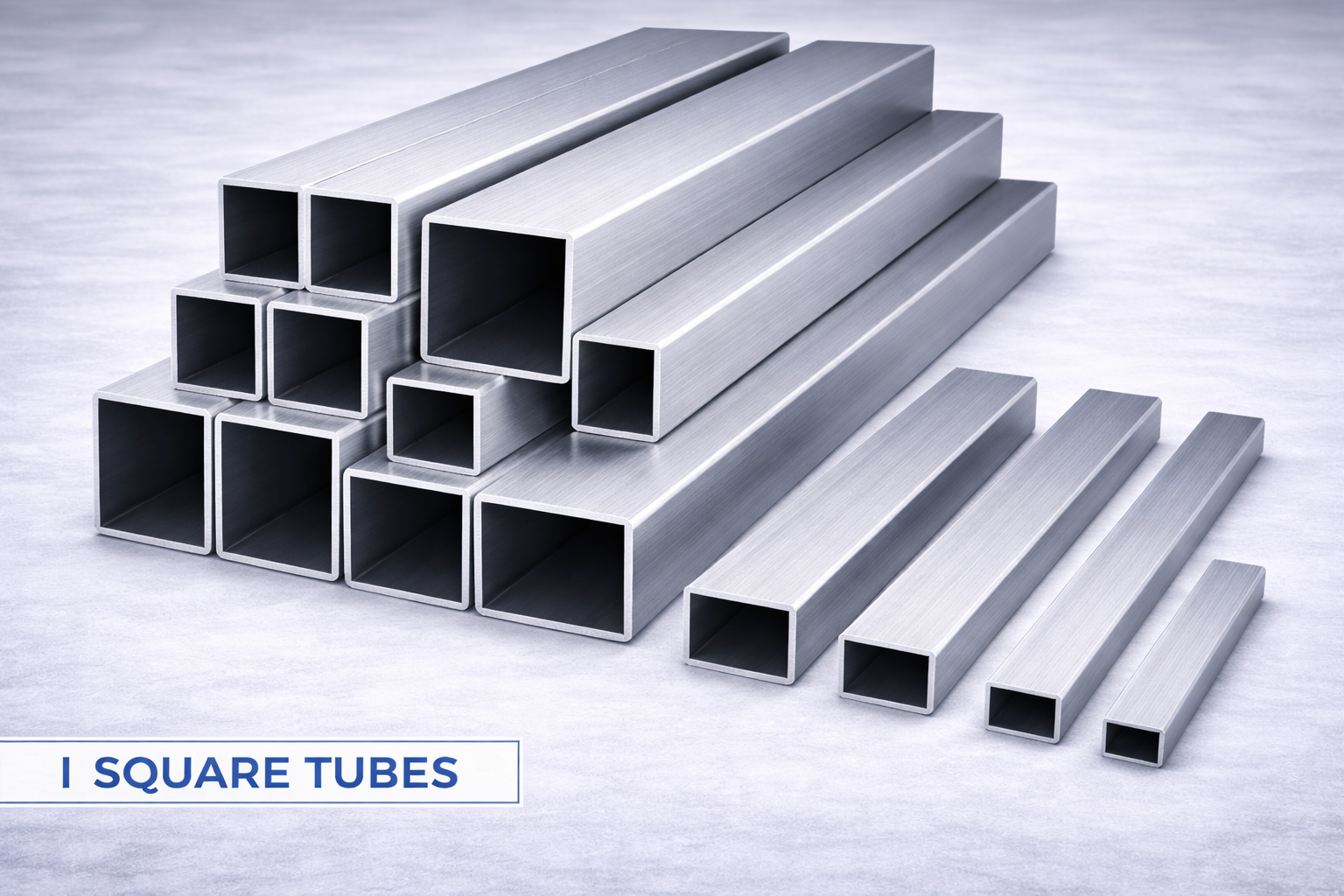

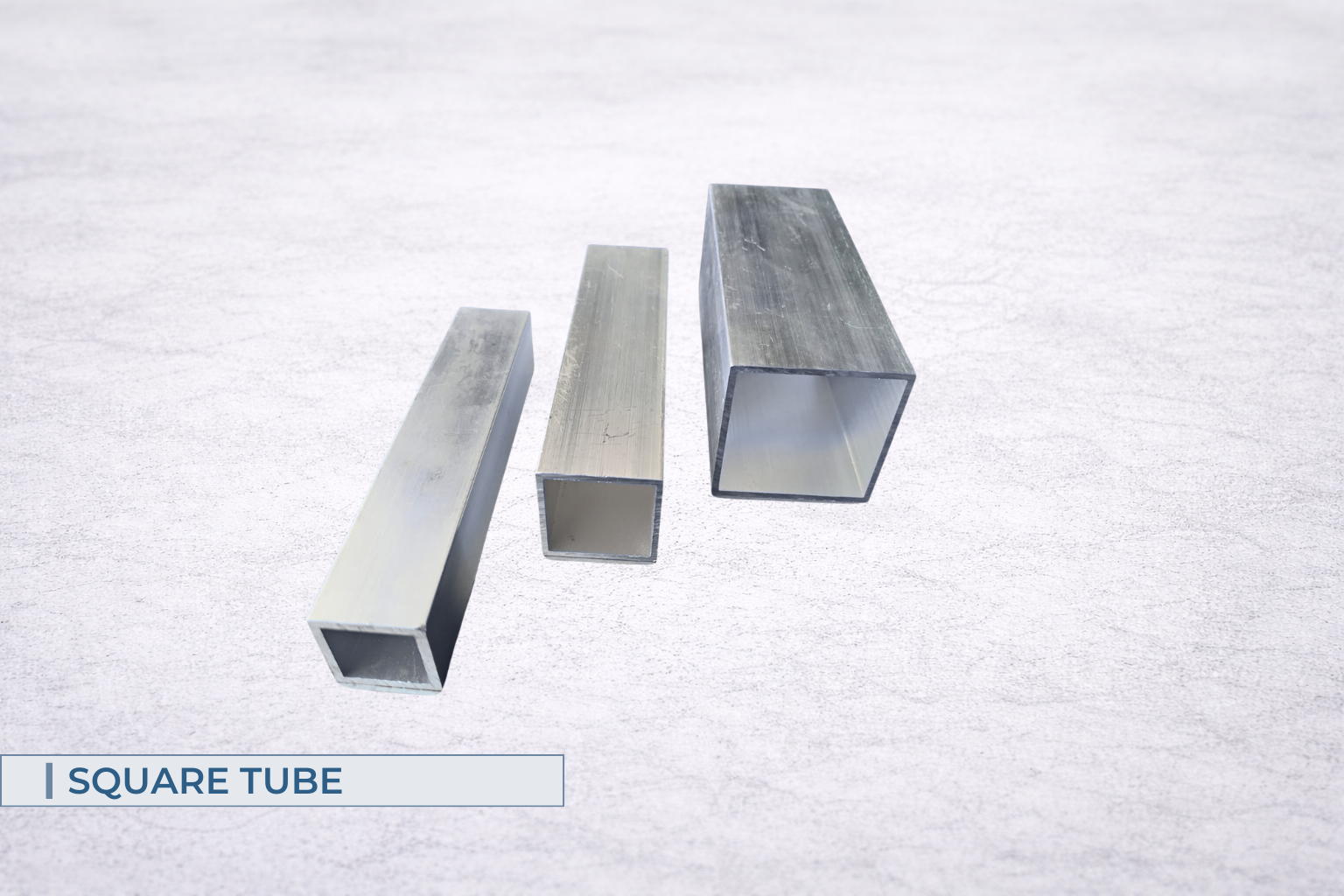

Square Tube

Square Tube

Square Tube profiles offer uniform strength across all sides and are widely used in frames, supports and structural systems. Manufactured in durable aluminium, they provide corrosion resistance and clean aesthetics.

Make an enquiry
View full details

Product Spec

Technical dimensions, material grade and manufacturing details for this product.

Square Tubes are available in 6063 / 6061 alloys and customers include the mining, carport, signage, awnings, interiors and transport sectors. Square Tube can be supplied with a radius corner as an optional extra.
SQUARE TUBES GRADE
12mm x 12mm x 1.2mm x 6000mm 6063T6
12.7mm x 12.7mm x 1.5mm x 6000mm 6063T6
16mm x 16mm x 1.6mm x 6000mm 6063T6
19mm x 19mm x 1.5mm x 6000mm 6063T6
19mm x 19mm x 3.18mm x 6000mm 6063T6
20mm x 20mm x 1.5mm x 5000mm 6063T6
20mm x 20mm x 1.5mm x 6000mm 6063T6
20mm x 20mm x 2mm x 6200mm 6063T6
22.5mm x 22.5mm x 2mm x 6000mm NA10U 6063T6
25mm x 25mm x 1.4mm x 6000mm 6063T6
25mm x 25mm x 1.4mm x 6000mm NA10U 6063T6
25.4mm x 25.4mm x 2mm x 6000mm (Radius) 6063T6
25.4mm x 25.4mm x 2mm x 6000mm (S) 6063T6
25mm x 25mm x 3mm x 6000mm 6063T6
31mm x 31mm x 1.6mm x 6000mm 6063T6
31.76mm x 31.76mm x 3.18mm x 6000mm (Radius) 6063T6
31.76mm x 31.76mm x 3.18mm x 6000mm (S) 6063T6
31.8mm x 3.2mm x 6000mm (6082T6) (L) 6063T6
38mm x 38mm x 1.6mm x 6000mm 6063T6
38mm x 38mm x 2mm x 6000mm 6063T6
38mm x 38mm x 3mm x 6000mm (6082T6) 6063T6
40mm x 40mm x 2mm x 6200mm 6063T6
40mm x 40mm x 2mm x 3000mm & 6000mm 6063T6
50mm x 50mm x 1.5mm x 6000mm 6063T6
50mm x 50mm x 2mm x 6000mm 6063T6
50mm x 50mm x 2.5mm x 4800mm 6063T6
50mm x 50mm x 3mm x 6000mm 6063T6
50mm x 50mm x 5mm x 6000mm (Mill finish) 6063T6
60mm x 60mm x 3mm x 6000mm 6063T6
76mm x 76mm x 2mm x 6000mm 6063T6
76.2mm x 76.2mm x 3.18mm x 3000mm 6063T6
76.2mm x 76.2mm x 3.18mm x 6000mm 6063T6
76.2mm x 76.2mm x 6.35mm x 6000mm 6063T6
100mm x 100mm x 2mm x 6000mm 6063T6
100mm x 100mm x 3.5mm x 6000mm 6063T6
160mm x 160mm x 3mm x 6000mm 6063T6
Other thicknesses, sheet sizes and alloys are available on request.
Cut-to-size options and bulk supply available. Contact us for project-specific requirements.
